AnywhereUSB
USB Over IP
* Network-enabled USB hub
* Access and monitor USB peripheral devices over TCP/IP network
* Works with existing POS or other application software
* Live video feed with Watchport/V
Digi AnywhereUSB是一種網絡功能的USB集線器,採用Digi的專利USB over IP 的技術,提供伺服器可以經由TCP / IP網絡,
使用戶能連結有線或無線網絡上任何地方的USB裝置.

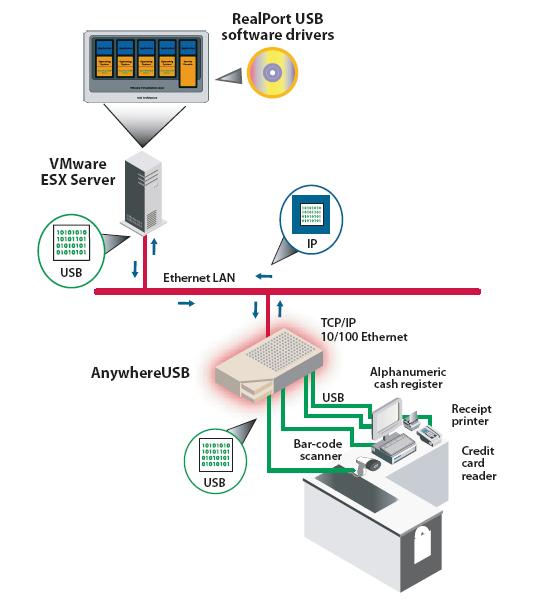

VMware ESX Server使用Digi AnywhereUSB架構圖:
Features
* RJ-45 Ethernet to 5 USB ports
* Remote configuration utility
* Field-upgradeable software and firmware
* 1 static (fixed) IP address per unit
* 10/100Base-T Ethernet support
* LEDs for system and device status
* RJ-45 crossover cable
* Data rates up to 12 Mbps per USB port
* 500 mA downstream power per device
* USB 1.0, 1.1, 2.0 compatible (USB 2.0 devices operate at 12 Mbps)
* Multiple units supported per server
* 2 Open Host Controller Interface (OHCI) controllers
AnywhereUSB/5 - Front
Anywhere USB/5 - Back
